Dynamic Pressure Sensor for High Pressure Applications

The AutoPSI-S2000 has been designed for high pressure (2,000 bar or 30,000 psi) dynamic pressure measurement in harsh environments characterized by temperatures up to 300°C, high levels of Electromagnetic and Radio Frequency Interference fields (EMI/RFI), and chemically volatile media.

The AutoPSI-S2000 comes with the service lifetime up to 500 million cycles or 3 years (based on a fatique-free fiber optic/metal diaphragm design). The unprecedented sensor lifetime enables continuous monitoring and control of high pressure hydraulic systems.

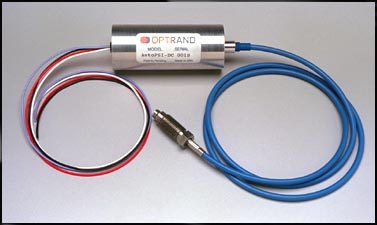

A robust sensor head design with a 1/2-20 thread and tapered sealing surface provides convenient mounting and torquing. The optical fiber is housed in standard 200°C-rated silicone cable or optional flexible metal hose for industrial applications. Permanently attached to this cable is a signal conditioner housing the optics and electronics.

The sensor has an accuracy of ±1% of Full Scale Output over a frequency range of 0.1Hz to 15kHz. A standard output voltage of 0.5V to 5V is provided, with different output values available. The sensor requires a 9V to 18V DC power supply.





Pressure Range 0-2000 bar (~30,000 PSI)
Over Pressure 1.5x Pressure Range
Natural Frequency >150 kHz
Frequency Range 0.1 Hz to 15 kHz (standard)
Operating Temperature
    Sensor Housing -40 to 300&degC (572&degF)
    Cable -40 to 200&degC (390&degF)
    Signal Conditioner -20 to 65&degC (150&degF)
    -HT Version -20 to 125&degC (257&degF)
Temperature Coefficiant of Sensitivity
    AutoPSI-S2000 ± 0.03% /&degC (standard)
Non-Linearity and Hysteresis ± 1.0% FSO
Output Signal 0.5-5 V Analog (white wire)
Diagnostic Output Signal 0-3.6 V Analog (blue wire)
Output Impedance 250 Ohm
Interface Power Supply 9-18 V DC, 85 mA (red wire)
Sensor Operational Mode Sealed Gauge
Pressure Media Gaseous or Liquid
Fiber Optic Cable Length 2m (6.5 ft.) Standard
Interface Unit/Amplifier Integrated with Sensor
Signal Conditioner Diam 1.125" x 3.25"
Guaranteed Lifetime 500 Million Pressure Cycles or 3 years
